2-Piece Pull-up Baby Diaper Lines: 5 Myths to Avoid—and What to Do Instead
For first-time factories: decision matrix, mini-ROI, and a 30-60-90 ramp plan
Myth vs. Reality (for new entrants)
Myth 1: “Chase top speed first; yield will follow.”
Reality: For a new plant, stable yield is worth more than a flashy peak number. Lock a reproducible set-point and treat speed as a dependent outcome.
Do this: Run small DOE trials to narrow CPPs (web tension, glue add-on, nip pressure, rotary phase, sealing temp/time) and enforce online SPC guard bands.
Myth 2: “Mechanical or half-servo is cheaper.”
Reality: Lower CapEx can be erased by changeover losses, slower scale-up, and weaker traceability.
Do this: Start with full-servo so size changes are recipe-driven and repeatable; the line learns faster than your newest operator.
Myth 3: “Roll changes are minor.”
Reality: Most early downtime hides in splicing and alignment.
Do this: Specify servo unwinds with buffer tension and zero-time splicing, plus firm web guiding and auto waste removal at deviation.
Myth 4: “Operators’ feel is faster than recipes.”
Reality: What scales is recipe discipline, not heroics.
Do this: Store golden settings as HMI recipes; tie lots, shifts, and parameters in a lightweight MES + SCADA/PLC stack for traceability.
Myth 5: “Remote support is optional.”
Reality: In year one, mean time to diagnosis decides your OEE.
Do this: Choose a PLC with Ethernet remote support so service can see what you see—fast.
Decision Matrix (illustrative)
Stable yield — Weight: 30% | Mech/Half-servo: 6 | Full-servo: 9
Changeover economics — Weight: 20% | Mech/Half-servo: 5 | Full-servo: 9
Traceability/compliance — Weight: 15% | Mech/Half-servo: 6 | Full-servo: 8
Maintenance & upgrades — Weight: 15% | Mech/Half-servo: 6 | Full-servo: 8
Learning curve — Weight: 20% | Mech/Half-servo: 6 | Full-servo: 9
Conclusion: full-servo wins where startups feel the pain—repeatable stability and low-drama changeovers.
Mini-ROI (back-of-envelope)
Stable set-point: ~900 pcs/min
Qualified rate: common entry baseline 95% vs. full-servo target ≈97%
Delta output per hour ≈ 2% × 900 × 60 = 1,080 pads saved from scrap
Multiply by your per-pad material cost and operating hours; compounding weekly savings typically dwarf the one-time option price for servo/unwind features.
A Platform Built for First Plants (your product, applied)
Model: Full-servo high-speed 2-piece pull-up (baby pants) production line by Welldone
Why it fits a startup:
Keep the web running: Servo unwinds + buffer tension + zero-time splicing minimize the most common early-stage stoppages and stabilize tension during roll changes.
Self-heals small errors: Strong deviation correction with automatic waste removal clears defects before they travel downstream, protecting your pass rate.
Small team, big control: Full-servo, shaft-less, modular stations; HMI recipes shorten the learning curve; Ethernet-enabled PLC unlocks high-speed remote diagnostics.
Quality capability: In production, a qualified-product rate up to ~97% is achievable—material loss stays predictable, which makes finance happy.
Planning clarity: Typical delivery ≈120 days from deposit, so you can sequence civil works, utilities, and hiring without idle time.
(All bullet points mirror the feature set and planning assumptions listed on your product page.)

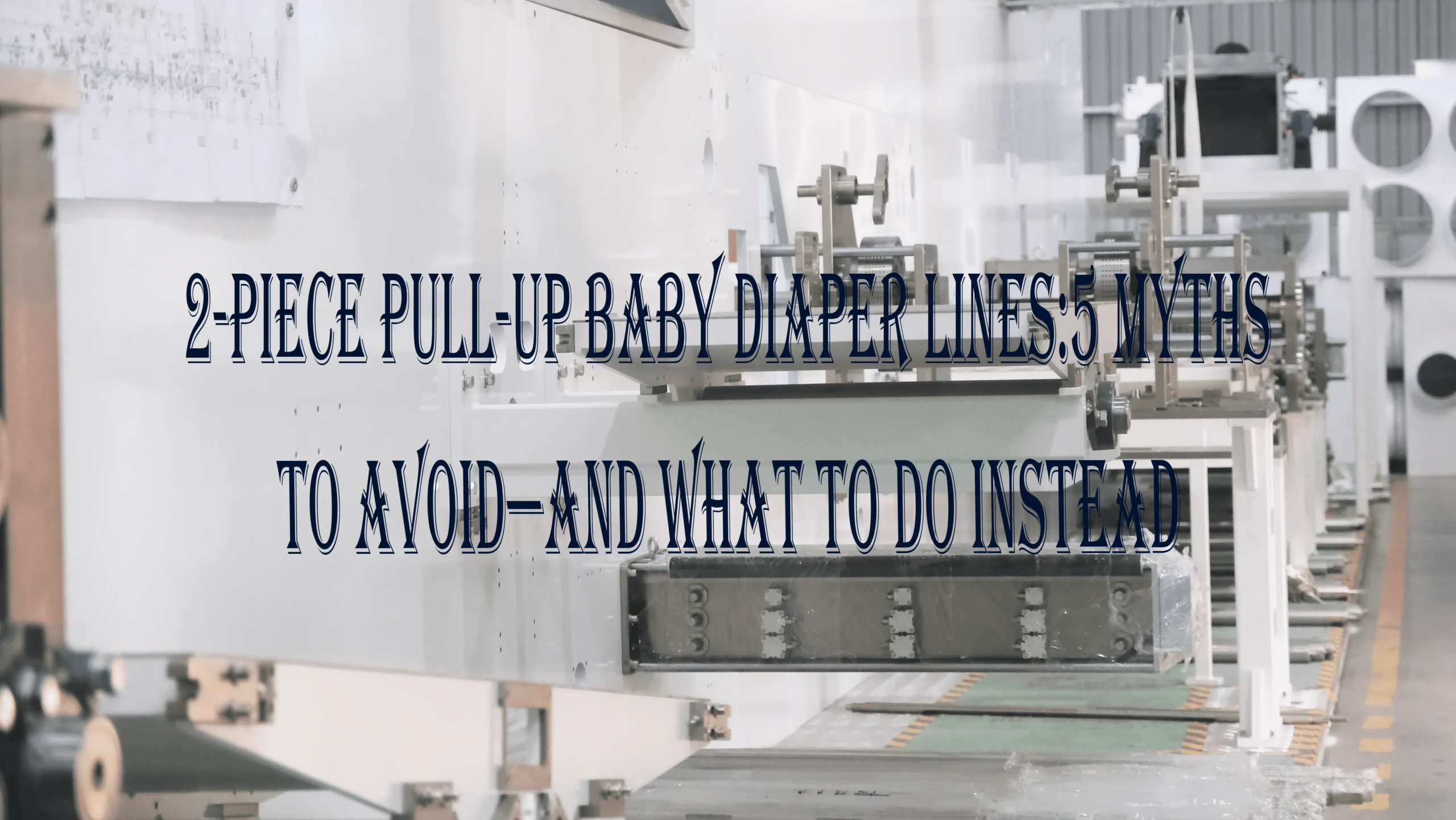

Welldone full-servo hygiene converting line with modular stations
30-60-90: a ramp plan you can hand to the floor
Day 0–30 — “Stable”
Freeze the initial sizes and pack counts.
Map aisles, pallets, and operator stations; pull power/air to the footprint.
Run DOE to tighten CPP windows; publish Recipe v1; enable SPC charts.
Day 31–60 — “Accurate”
Operate at ~900 pcs/min while lifting qualified rate to 96–97%.
Enforce AQL incoming checks; barcode/RFID lots; start daily OEE and loss trees.
Train a second shift on recipes (not “feel”).
Day 61–90 — “Fast”
Trim changeover minutes and trim waste; push speed only within guard bands.
Lock SOPs; review MTBF of splices, guides, and knives; close chronic stops.
Closing Thought
A new company wins by making every minute sellable: stable registration, clean seals, predictable changeovers, and traceable data. A full-servo 2-piece pull-up platform like Welldone’s—with servo unwinds and zero-time splicing, robust deviation correction with auto waste removal, Ethernet remote support, and a qualified rate up to ~97%—gives you that headroom from day one.
