Welldone – Fully Automatic Folding Napkin Production Line (Stacking + Single Pack Wrapping)
A fully automatic napkin making line integrating high-speed stacking napkin folding and single pack wrapping. Suitable for producing various napkin sizes with stable counting, embossing, optional multi-color printing, and 3D wrapping packaging—ideal for brands and converting factories aiming for consistent output and retail-ready packs.
- Model Number:
- WD-ZDCJ-(230-400)
Outline
Welldone Fully Automatic Folding Napkin Production Line integrates a high-speed stacking napkin making machine and an automatic single pack wrapping machine.
It supports stable folding, accurate counting, and neat 3D wrapping packaging, helping manufacturers improve efficiency, reduce labor, and deliver consistent retail-ready napkin packs.
Main Function Characteristics
- High-speed stacking napkin folding: mechanical folding with stable output and tidy stacking.
- Accurate counting & control: PLC program control + electronic/pneumatic folding for consistent counting.

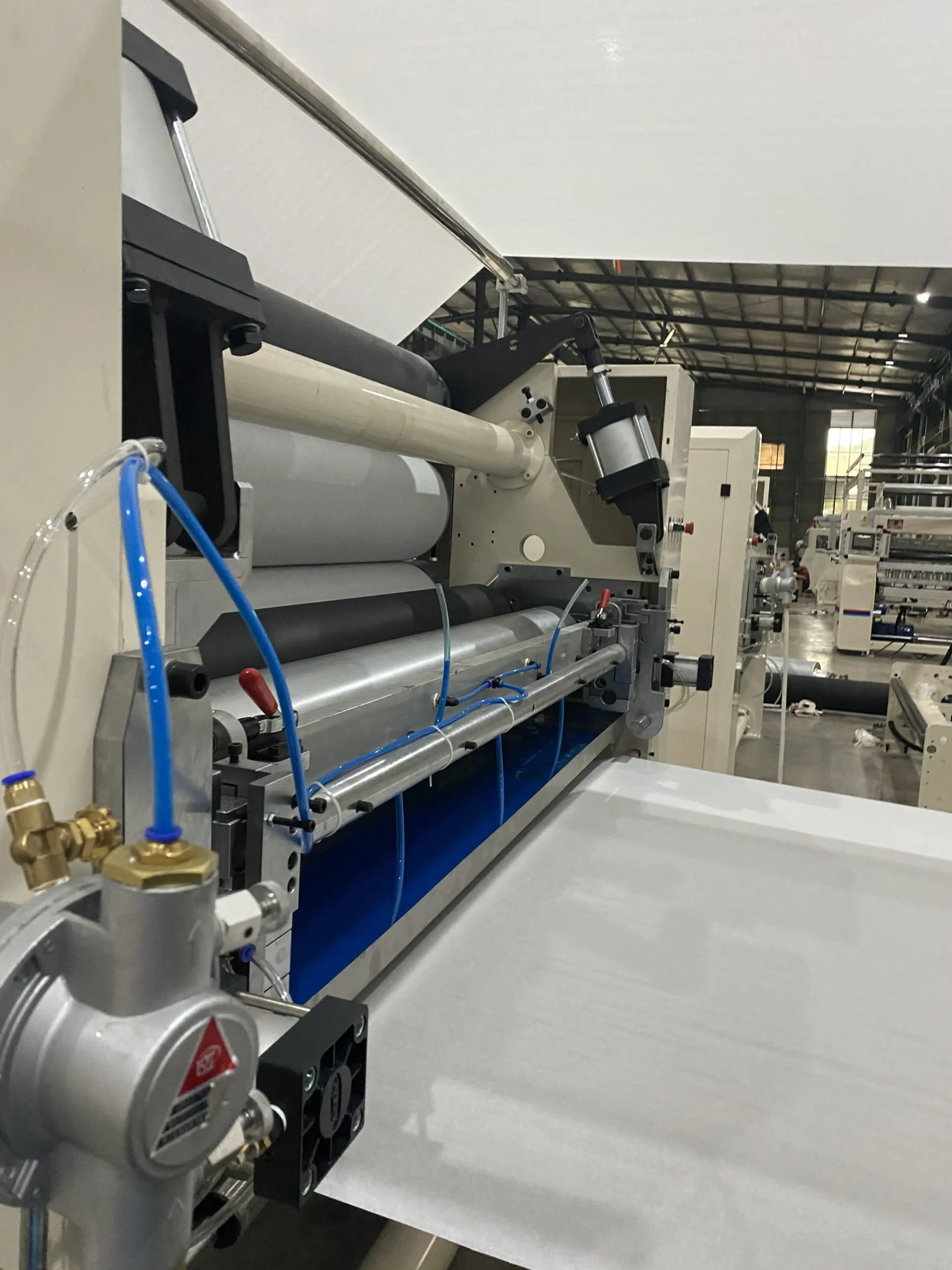

- Embossing supported: improves texture and bonding of paper layers.
- Color printing optional: 1–4 color printing with ceramic anilox roll and sealed ink box.
- Automatic single pack wrapping: ASF automatic infeed + 3D wrapping format for clean pack appearance.
- Servo & heating system: stable sealing and smooth package finishing.
Main Technical Parameters
A) Stacking Napkin Making Machine
| Finished product size (Open) | 230×230mm – 400×400mm |
| Layers of paper | 1–2 layers, 15–21 g/m² (1 layer paper need ≥19g) |
| Embossing | One set steel to wool |
| Color printing device | 1–4 color, ceramic anilox roll, sealed ink box |
| Folding type | Mechanical folding, 1/4 |
| Host power | 4KW |
| Cutter power | 1.5KW |
| Power supply | 380V, three-phase four wire, add ground |
| Cent fold function | PLC program control + electronic/pneumatic folding, accurate counting |
B) Automatic Single Pack Wrapping Machine
| Scope of application | Facial tissue, hand towel, napkin tissue |
| Infeed | ASF full automatic |
| Max. stable operation speed | 70–100 bags/min |
| Tissue length range (finished) | 120–360mm |
| Tissue height range (finished) | 90–200mm |
| Tissue width range (finished) | 40–170mm |
| Machine size | L4600mm × W3620mm × H1770mm |
| Machine weight | About 3000KG |
| Packing raw material | Double-sided heat seal CPP film |
| Air pressure | Custom / Depends on configuration |
| Power supply | 380V / 50HZ |
| Total drive power | 4.8KW |
| Total heating power | 4.6KW |
| Motion control | Three axis servo and axle location control |
| Packing format | Three-dimensional wrap |
Options & Customization
- Different napkin sizes within open size range
- Printing colors (1–4) and embossing pattern customization
- Packaging film type & pack format adjustment based on your market
- Line layout & integration to match your workshop space
Contact us: [email protected]
Website: www.cnwelldone.com

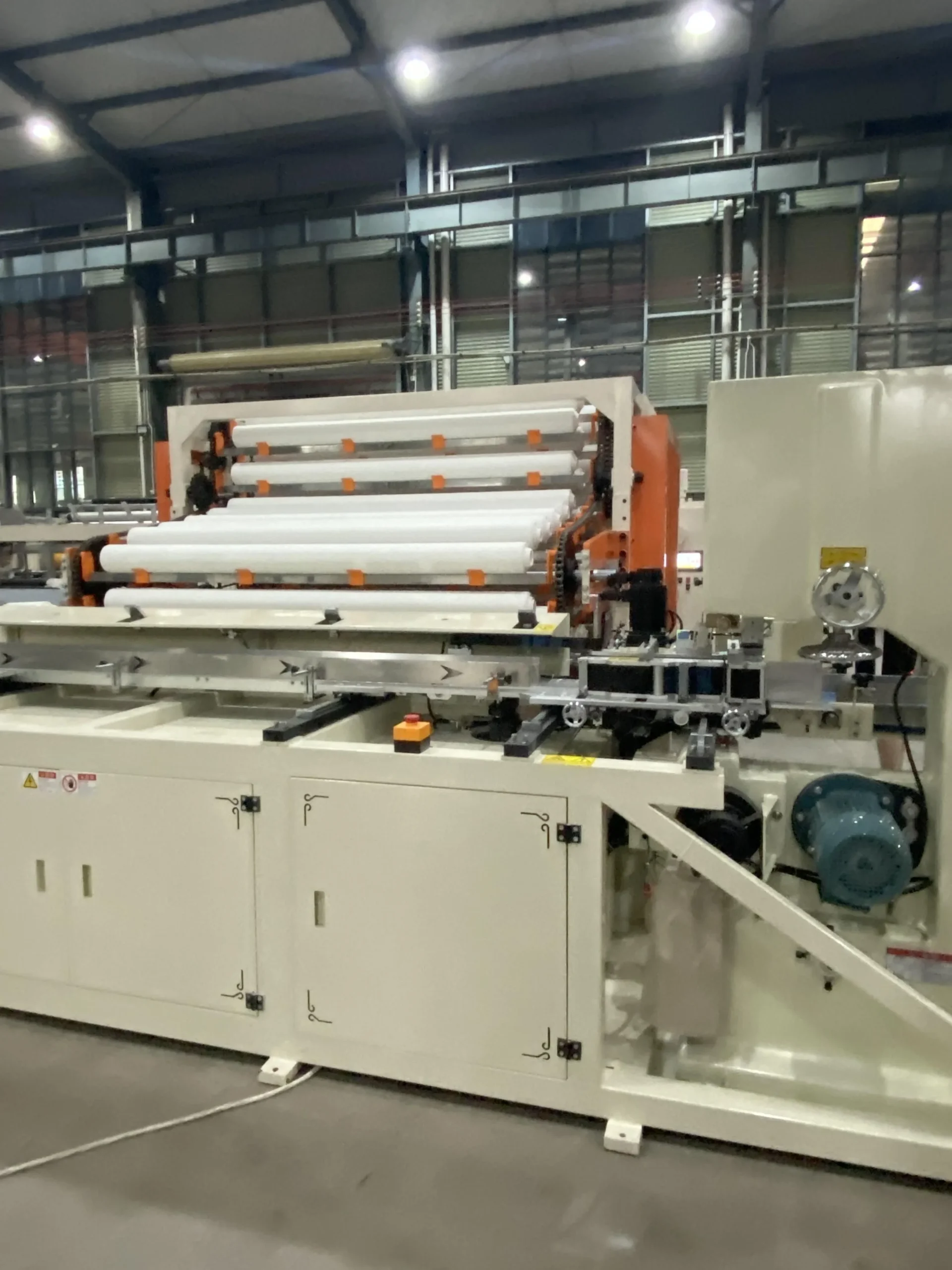

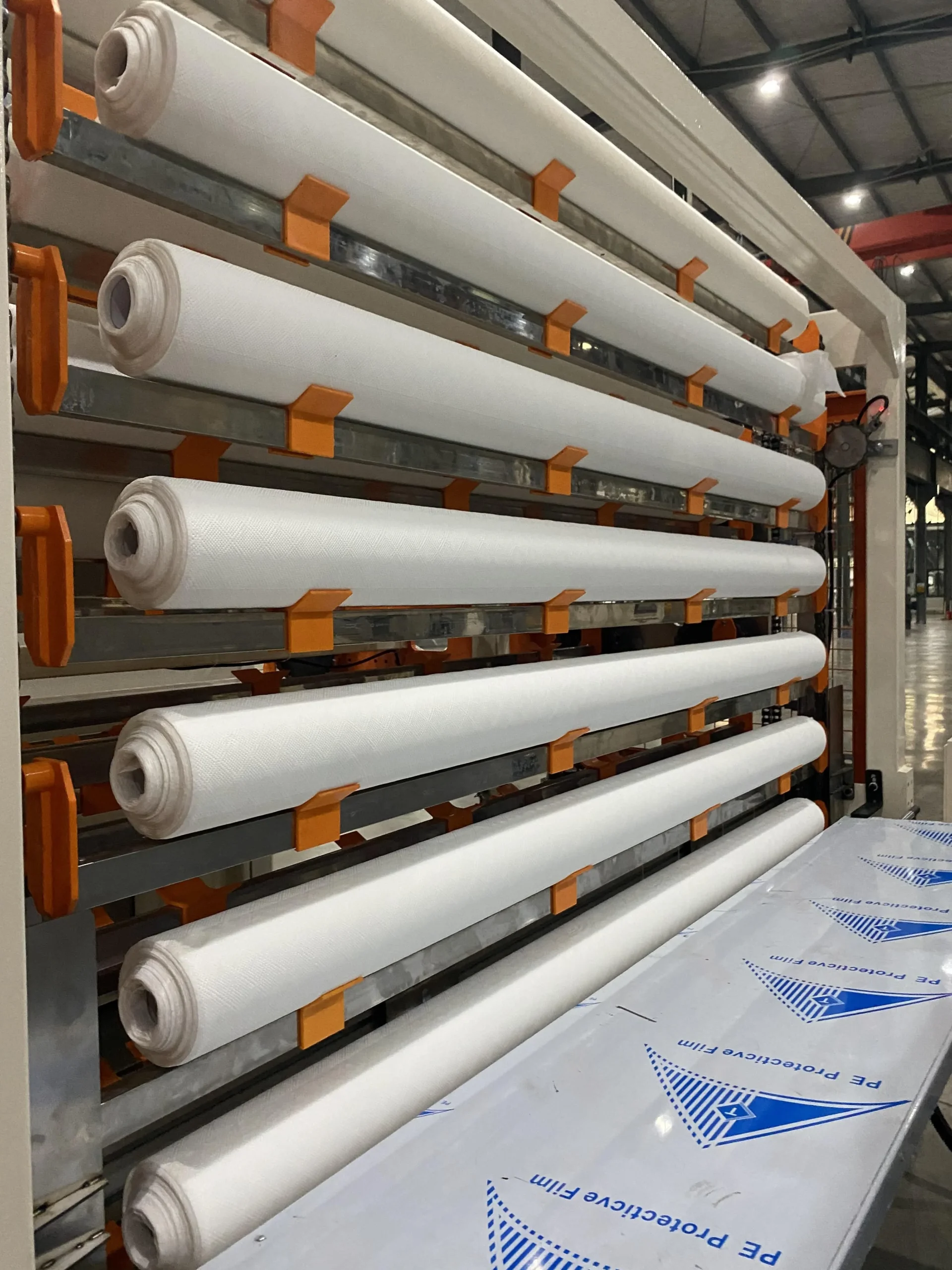

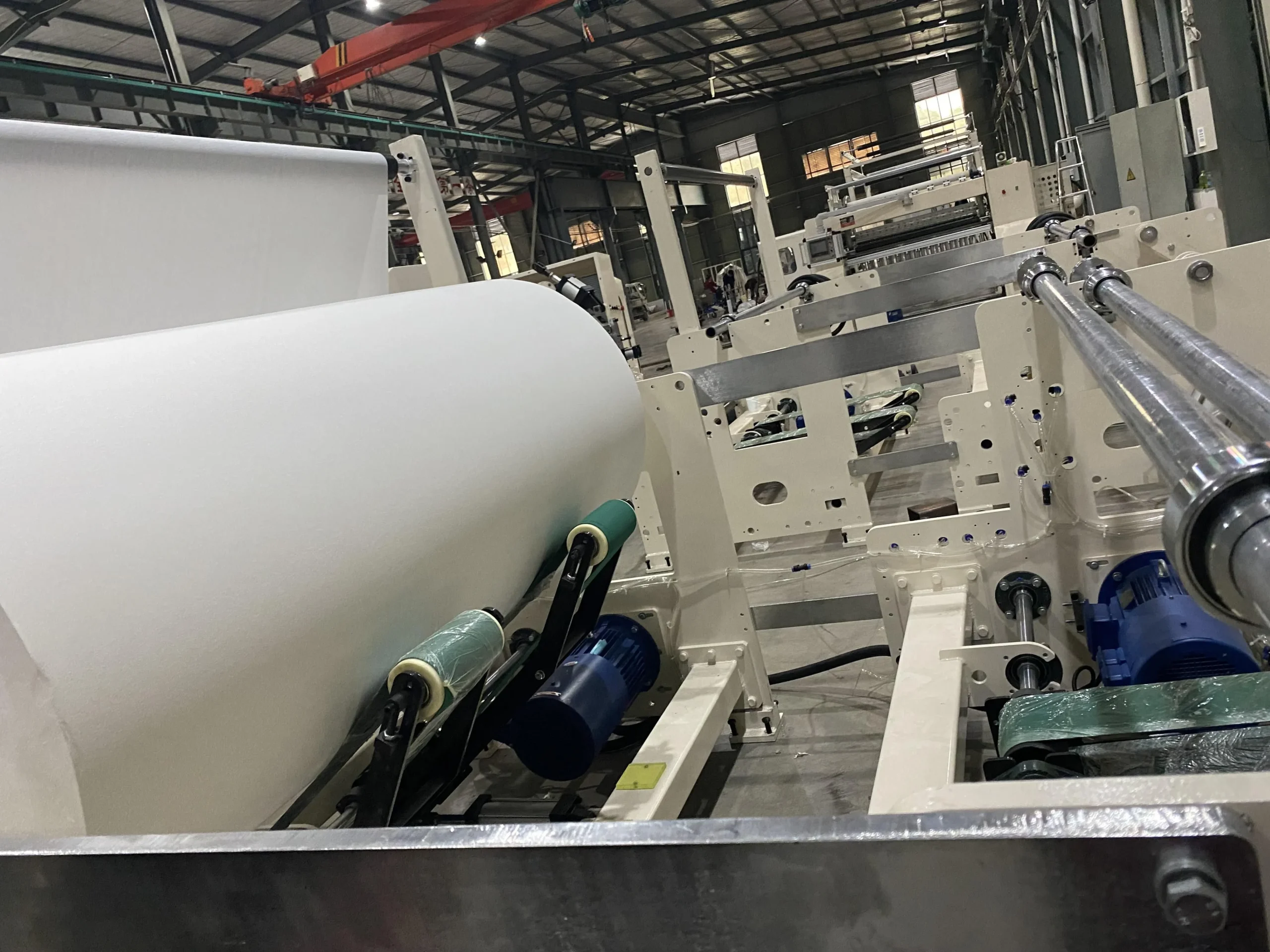

Parts Details
Work Shop
We provide factory testing before shipment. Customers are welcome to inspect the machine and confirm product quality and output stability.
Machine Packaging
Standard export packing: anti-rust protection + film wrapping + wooden case/wooden frame (as required). We support container loading guidance and international shipping coordination.
