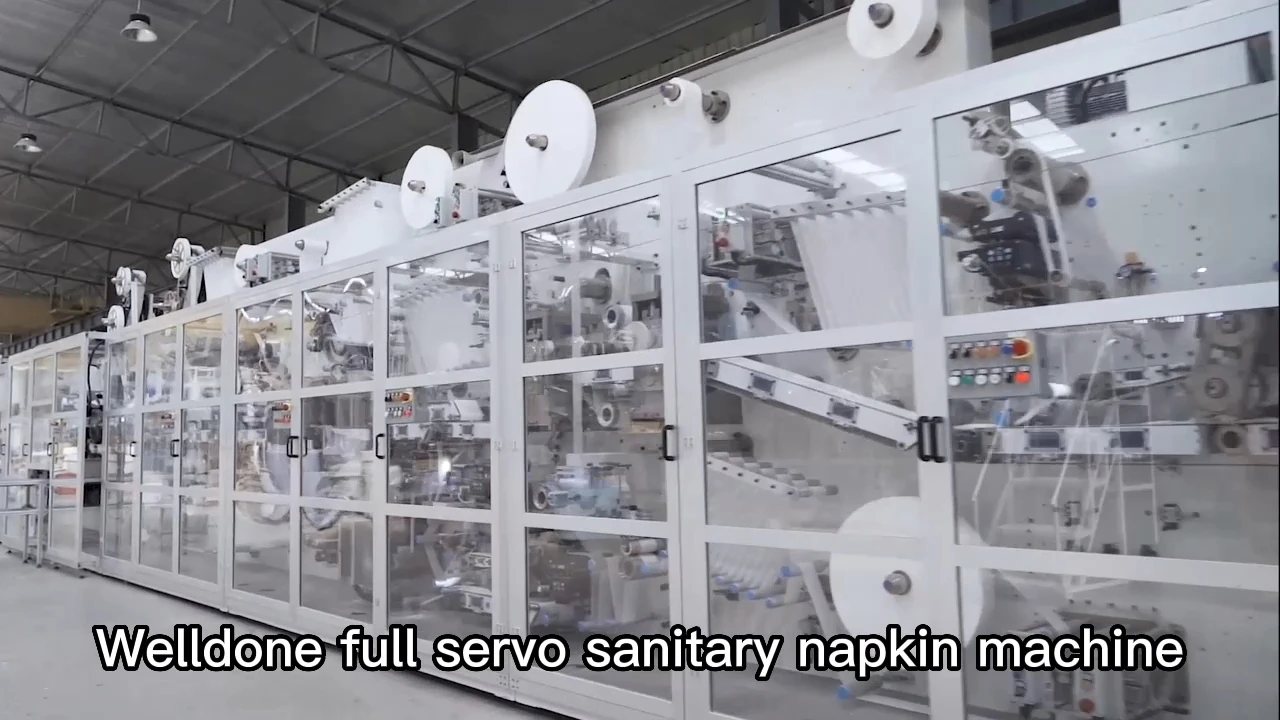

Welldone full servo sanitary napkin machine can reach 1000 pcs/min with many auto functions auto unwinding, auto splicing, tension control and auto rejection which can reduce the cost and make the machine run faster. All roller are made from carbon fiber which make the tension control more stable and the product quality to be high. The machine runs with high efficiency and the qualified products can up to 97% which saves raw material cost. Safety guard is installed with emergency stop buttons and safety lines which are laid reasonably and trimly.
Machine description
Applicable Industries | Manufacturing Plant, Machinery Repair Shops | Showroom Location | Egypt, Turkey, Philippines, Indonesia, India, Thailand, Kenya, Ukraine, Nigeria, Uzbekistan |
Condition | New | Product Type | Paper Product Making Machinery |
Processing Type | Laminating Machine | Place of Origin | Fujian |
Brand Name | Welldone | Voltage | 380V 50HZ |
Power | 400KW | Dimension(L*W*H) | 28.0m× 5.5m× 3.5m |
Weight | 40T | Warranty | 1 Year |
Production Capacity | 120Days average | After Warranty Service | Video technical support, Online support, Spare parts |
Local Service Location | Egypt, Turkey, Russia, Spain, Malaysia, Kenya, Argentina, Sri Lanka, Kyrgyzstan | Certification | CE & ISO9001 |
After-sales Service Provided | Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas | Name | High speed 600 pcs per minutes diaper manufacturing machine |
Model | WD-SP011 | Finished Products | sanitary napkin |
Color | Customized | Manufacture Time | 120Days average |
Raw materials | Wood Pulp/PE Film / SAP | place of origin | Fujian |
Waste Rate | Less than 2% | Operators | 8-10 |
Product type | sanitary napkin |
Design speed | 1000pcs/min |
Stable speed | 900pcs/min |
Machine System(For new machine) | Customized Option A: Mitsubish Option B: Simons |
Glue machine | Customized Option A: Chinese glue machine(Cost-effective) Option B: Nordson machine |
Web guide | Customized Option A: Chinese web guide Option B: BST web guide(or other brand) |
Passing rate | ≥ 98% (Not include the glue applicator, Auto Splicing) |
Electric wire | 3×120mm2+1×50mm2+1×25mm2 |
Compressed Air supply | 0.6-0.8Mpa |
Working space | 39m*9m*5m(L*W*H) |

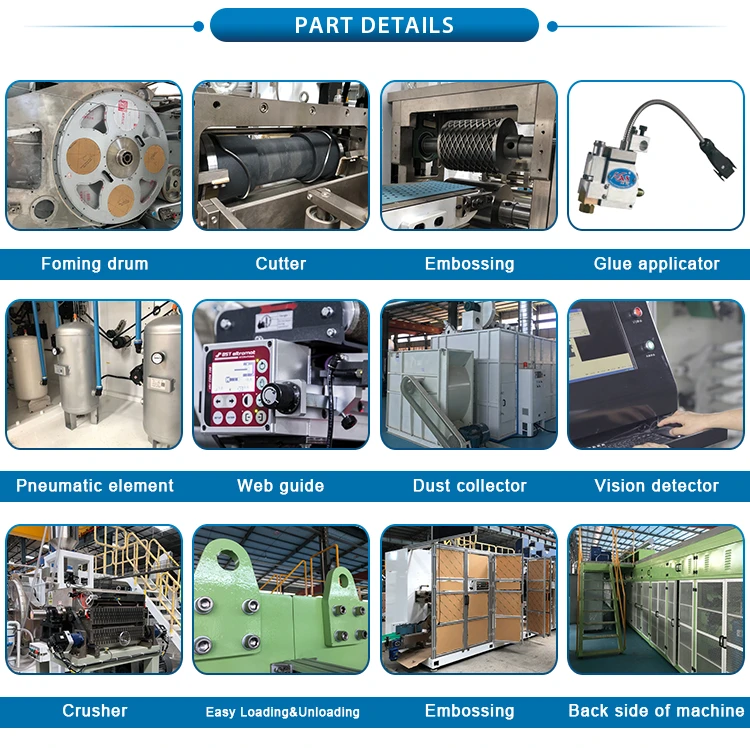

Parts Details

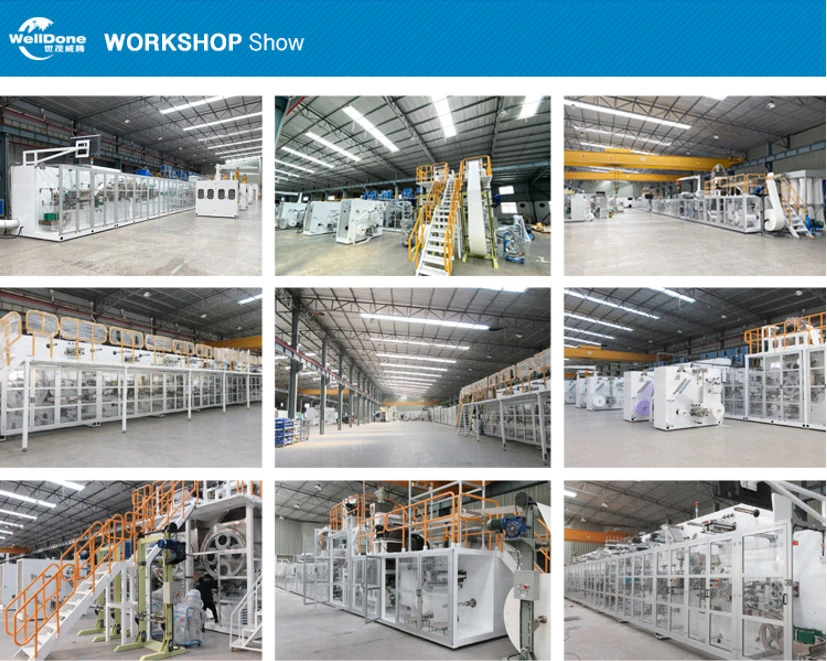

Work Shop
Machine Packaging
